Combination Lifting Beam Spreader Bar | All Lifting

Combination Lifting Beam - Spreader Bar

by All Lifting
Price on Application
Enquire
  • Description

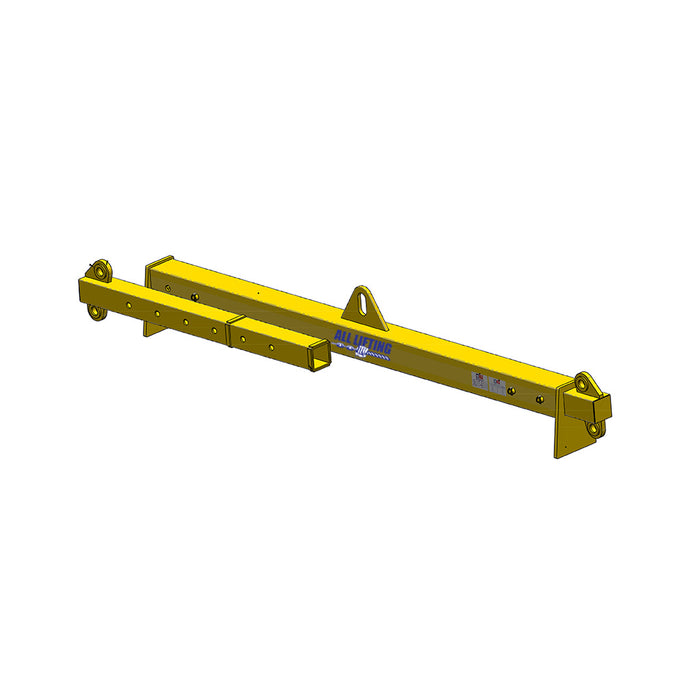

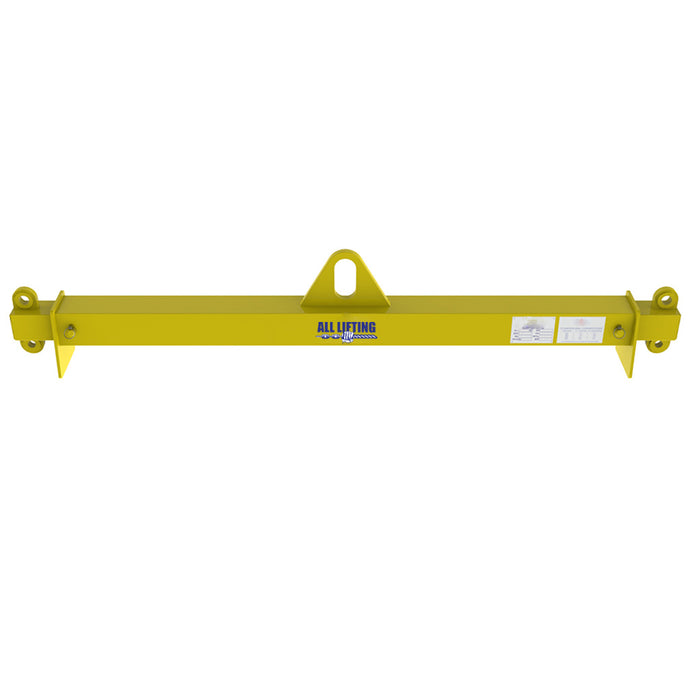

    Combination Beams that are sold from All Lifting come in a variety of types to provide you with flexibility. Combination beams can be used for both lifting and spreading purposes. This universal lifting device is cost effective and versatile, and suitable to lift a wide variety of loads. The spreader capacity is much greater than the lifting beam capacity. This device features adjustable arms that can be shortened or extended to suit a wider variety of loads.

    Working-Load-as-Combination-Lifting-Beam-and-Spreader Bar-All-Lifting
    • NATA tested and certified
    • Powder coated in safety yellow finish
    • Manufactured to Australian Standard AS 4991

    We have more than 40 years experience designing combination beams. They are available in a number of finishes, including galvanised, painted, and varnished.

  • Download

  • Shipping & Handling Fees

    We are pleased to offer free pick up from a branch or delivery that includes shipping and handling fees.

    Local Pick Up - FREE

    We have 5 convenient locations where you can pick up your order including:
    • Rocklea QLD
    • Glendenning NSW
    • Campbellfield VIC
    • Cameron Park NSW
    • Dandenong VIC

    Shipping & Handling Fees

    A shipping and handling fee applies to all orders that aren’t picked up from an All Lifting branch.
    All shipping fees are calculated at checkout based on the value of your cart.

    For full terms & conditions including our refunds policy please visit our Shipping Terms and Conditions

    Cart Value $ Shipping and Handling Fees
    $0-$50 $25
    $50.01-$100 $35
    $100.01-$300 $40
    $300.01-$500 $50
    $500.01-$800 $70
    $800.01-$1,000 $100
    $1,000.01-$2,000 $300
    $2,000.01-$3,000 $400

Prices are subject to change at any given moment

Product Specifications 9 and 15 Tonne

Product Specifications 30 and 50 Tonne

9 Tonne Spreader Beam/Lifting Beam

Open Length (mm)

WLL (t) as Lifting Beam

WLL (t) as Spreader Beam

2100

2

9

2600

1.4

8

3100

1

7

3600

0.8

6



15 Tonne Spreader Beam/Lifting Beam

Open Length (mm)

WLL (t) as Lifting Beam

WLL (t) as Spreader Beam

2650

3.1

15

3050

2.7

15

3450

2.4

15

3850

2

15

30 Tonne Spreader Beam/Lifting Beam

Open Length (mm)

WLL (t) as Lifting Beam

WLL (t) as Spreader Beam

4000

6

30

4500

3.5

30

5000

3

30

5500

2.5

30

6000

2

30



50 Tonne Spreader Beam/Lifting Beam

Open Length (mm)

WLL (t) as Lifting Beam

WLL (t) as Spreader Beam

4000

6.5

50

4500

6

50

5000

5.4

50

5500

4.9

50

6000

4.5

50
